Beach Haven II

Disclaimer
This home had been previously constructed with engineering approval. The package includes all plans and details necessary for construction. This includes all elevations, floor plans, floor framing plans, piling plan, girder plan and roof framing plan with associated details. Dimensions are accurate and intended to support final review and seal by a licensed local engineer. Final engineering approval may be required to ensure compliance with all local, state, and FEMA regulations. Flood-zone properties may have limits on ground-floor living space. Owners should confirm local requirements with surveyors and building officials to ensure compliance.

Plan Specifications

Bedrooms

5

Bathrooms

4.5

Width

32'0"

Depth

64'4"

Foundation

Piling

Living Area Sq.Ft.

2705

Story

2

Ground Floor Sq.Ft.

0

First Floor Sq.Ft.

1379

Second Floor Sq.Ft.

1326

Open Decks Sq.Ft.

192

Covered Decks Sq.Ft.

519

Covered Porches Sq.Ft.

519

Entry Sq.Ft.

406

Total Area Sq.Ft.

4341

- +

Description

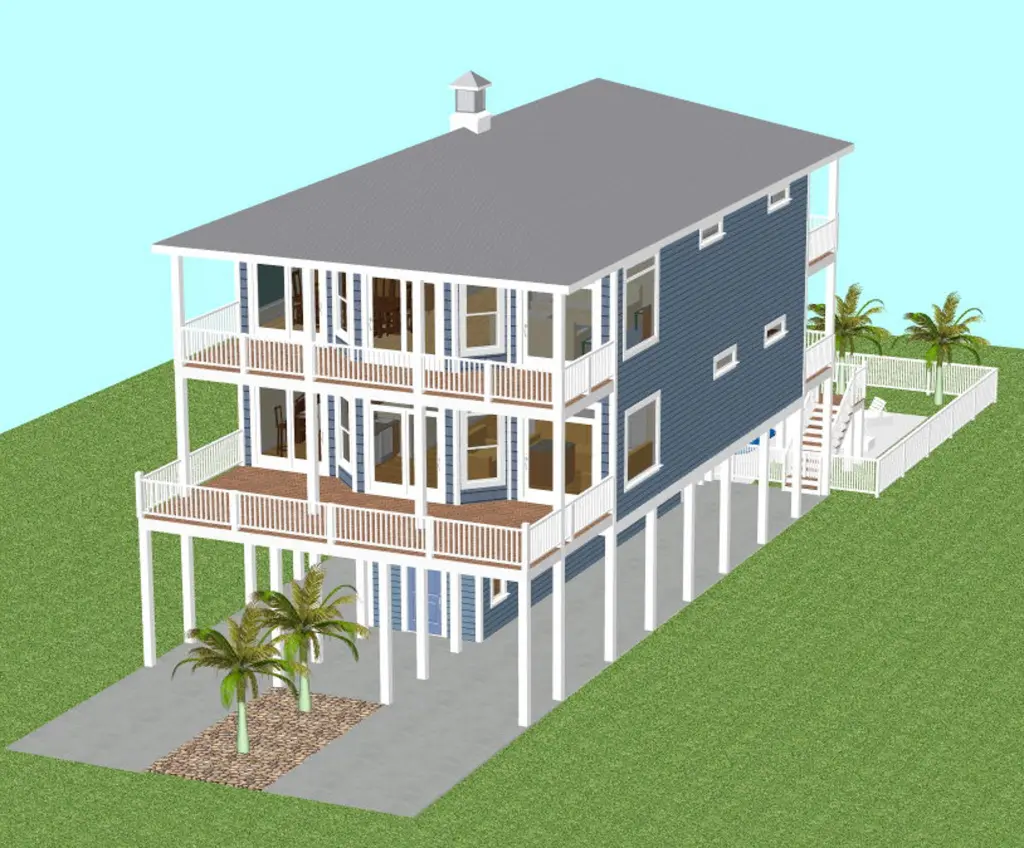

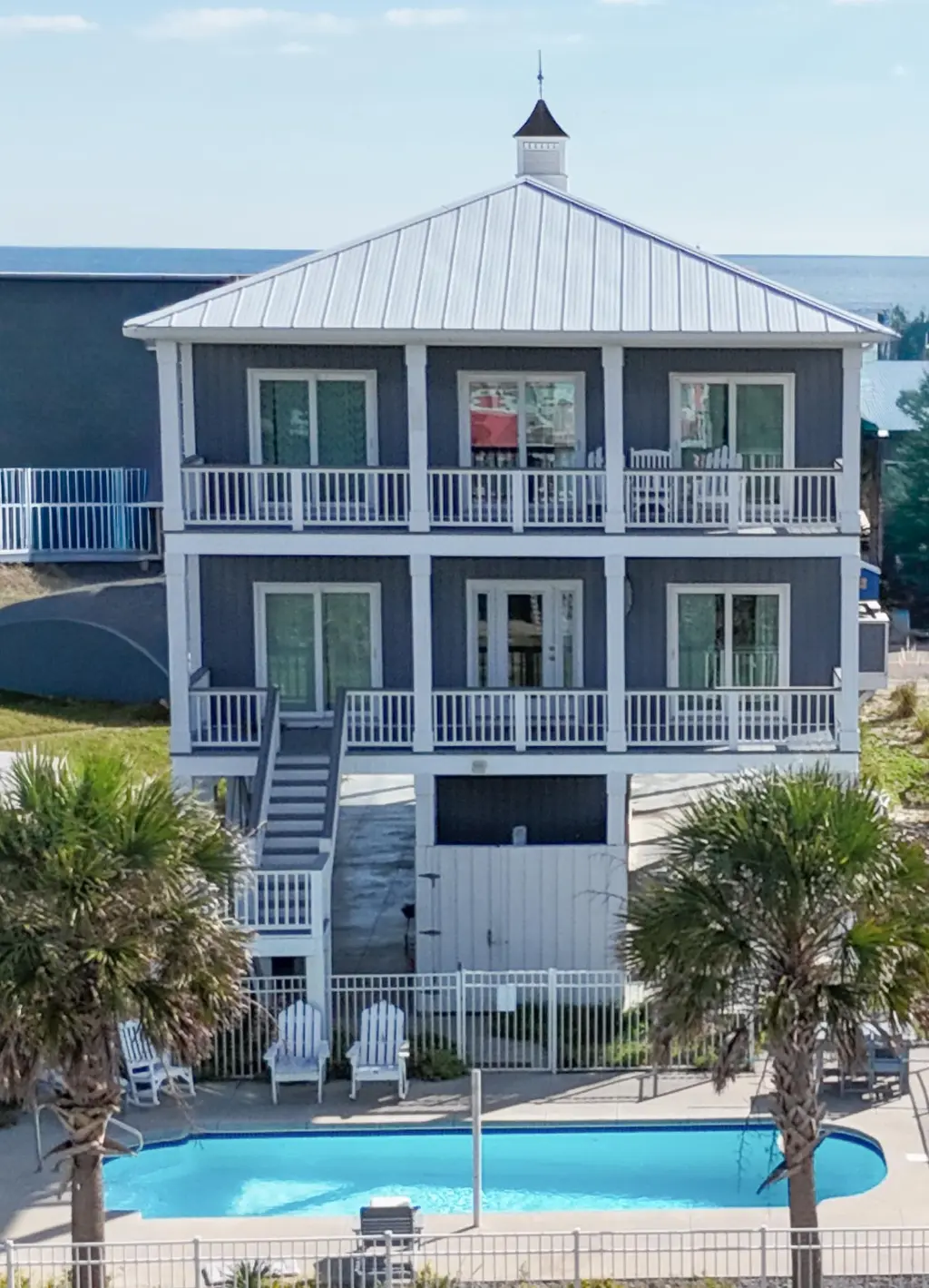

Beach Haven II is a 5-bedroom piling home designed to maximize natural light, airflow, and scenic views in coastal or other picturesque settings. An inverted floor plan places the main living areas on the upper level, while most bedrooms are located on the first floor for privacy and convenience. Expansive front and rear porches, along with a passenger elevator, create a comfortable layout suitable for full-time living, vacations, or rental use.

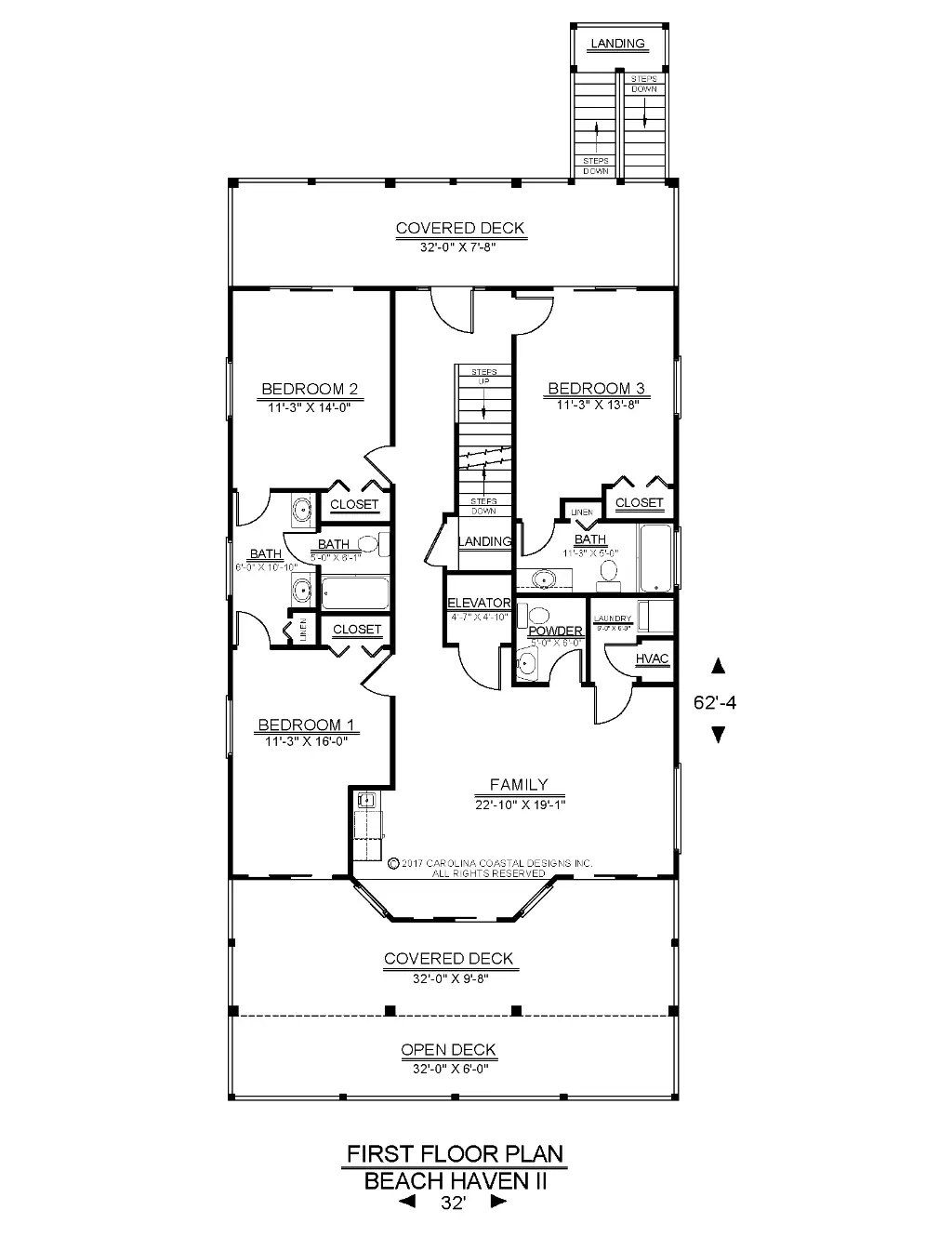

First Floor Features
The first floor is thoughtfully arranged for comfort and connection. It includes three generously sized bedrooms, two full bathrooms, and a convenient powder room. A spacious family room offers a central gathering space with easy access to the front covered deck, extended open deck, and rear porch. A centrally located laundry room and elevator access to all levels add everyday practicality.

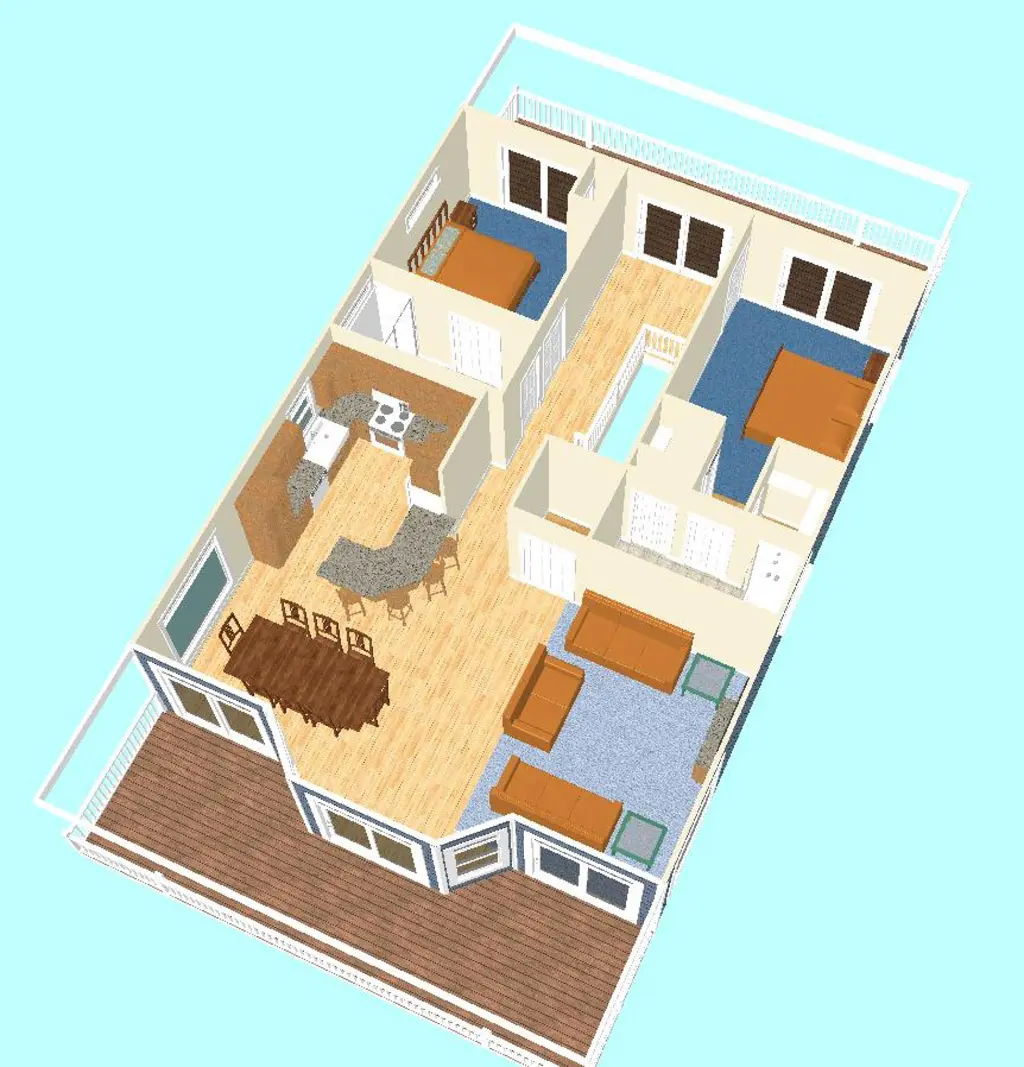

Second Floor Features
The upper living level features an open-concept great room with living, dining, and kitchen areas enhanced by vaulted ceilings. The modern kitchen includes a large center island and snack bar that flow into the dining space. Sliding doors open to covered porches at both the front and rear of the home, ideal for outdoor dining or relaxing. Two upper-level bedroom suites each offer a private bathroom, walk-in closet, and direct porch access. One suite is designed to be handicap-accessible, supporting multi-generational or mobility-conscious living.

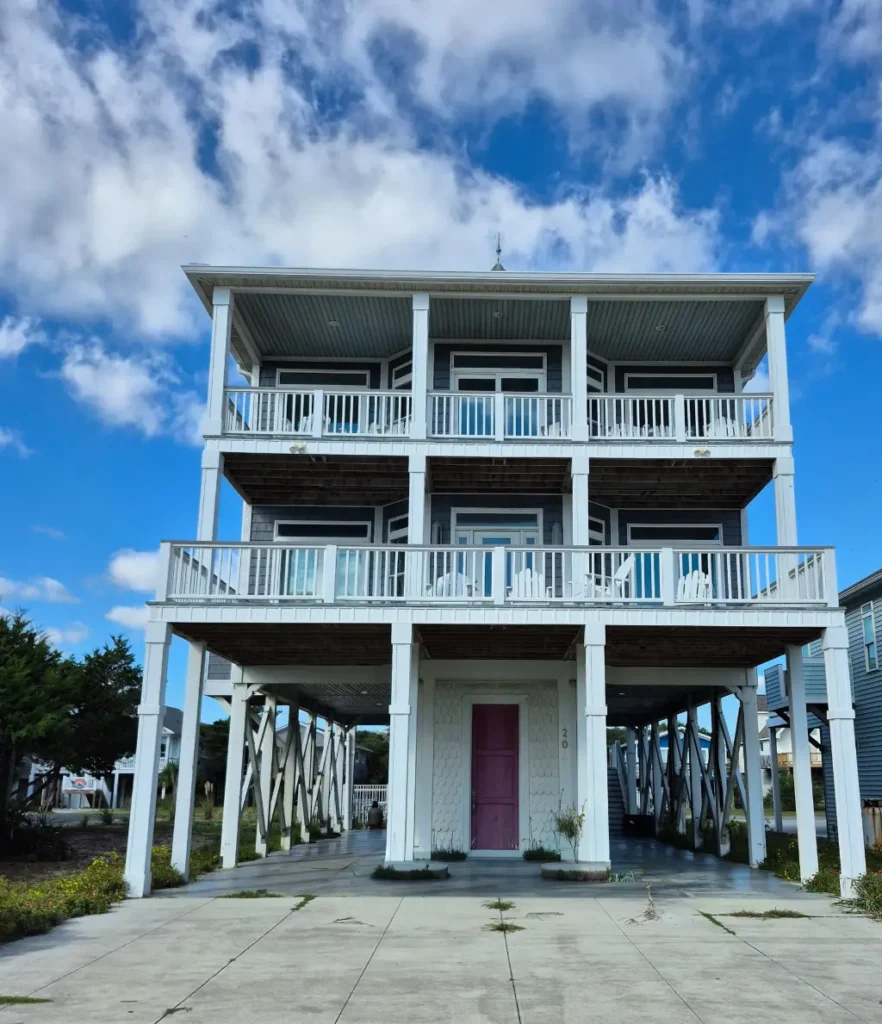

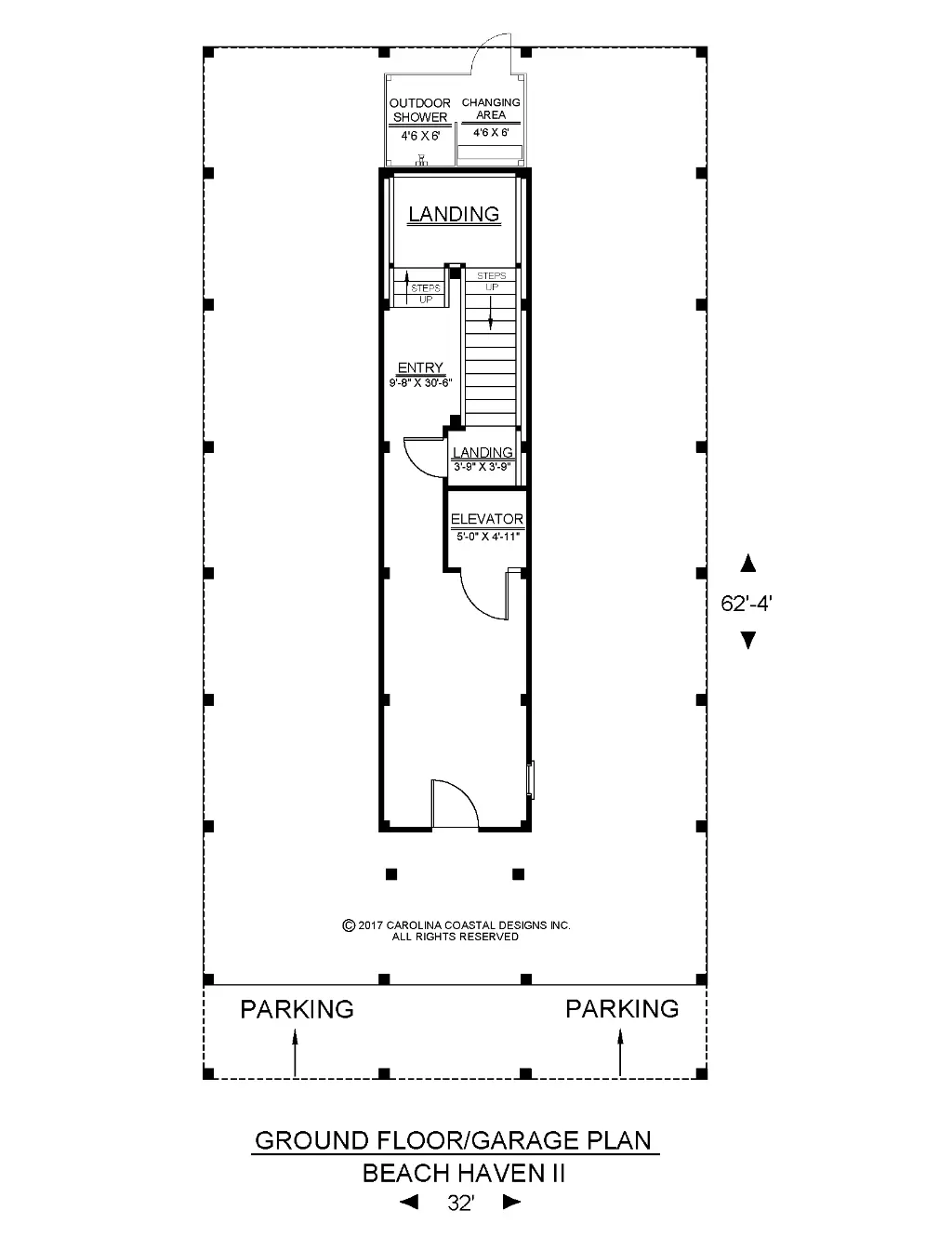

Ground Level (Under Home)

  • Covered parking for three vehicles
  • Secure access to interior stairwell and passenger elevator
  • Outdoor shower for easy cleanup after time outdoors

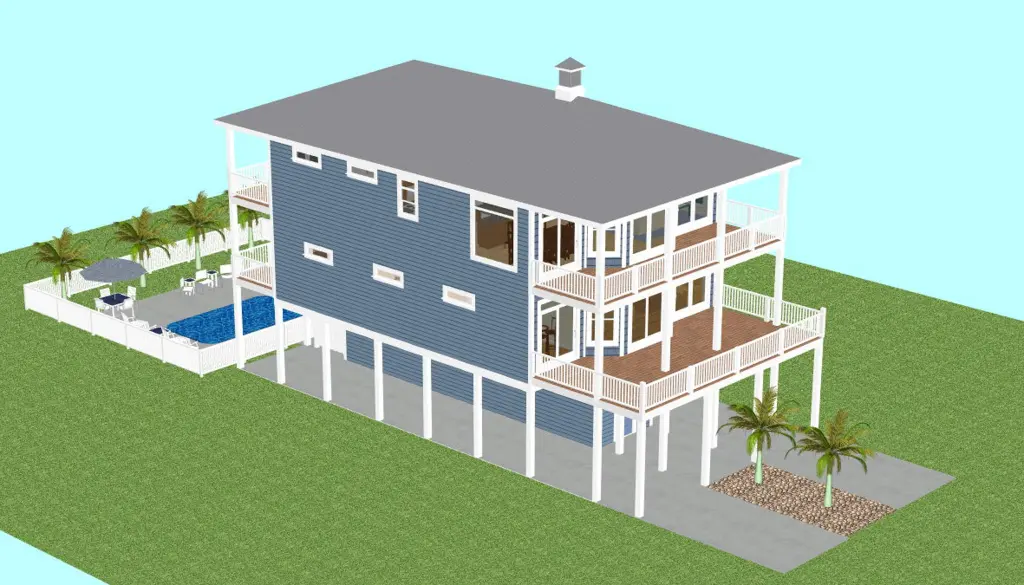

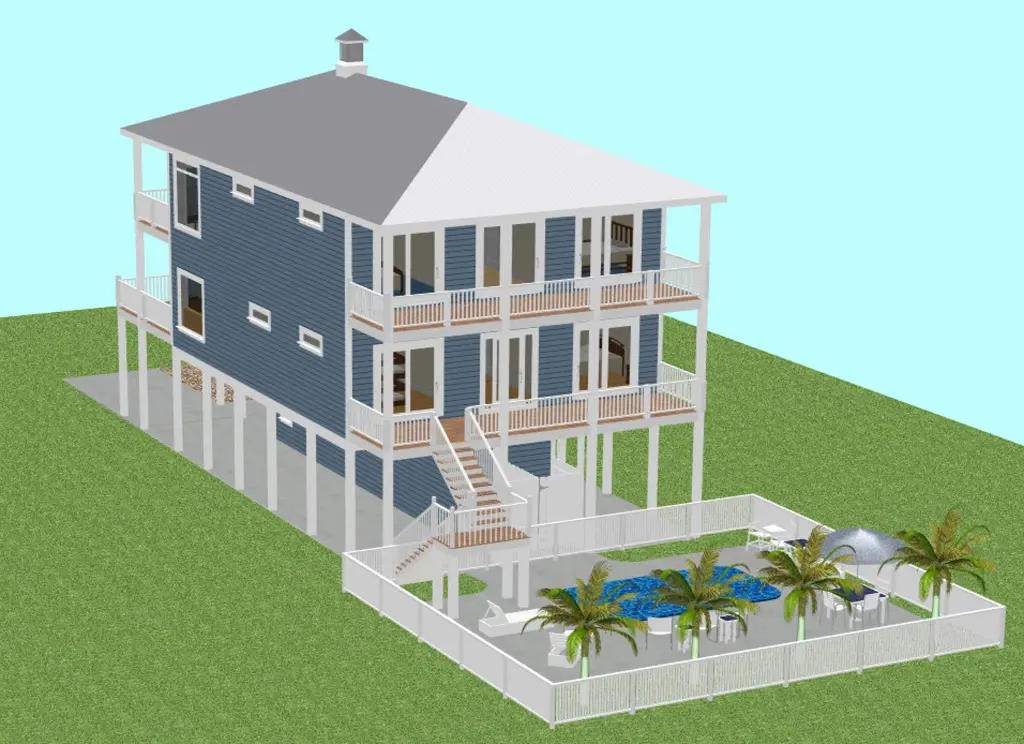

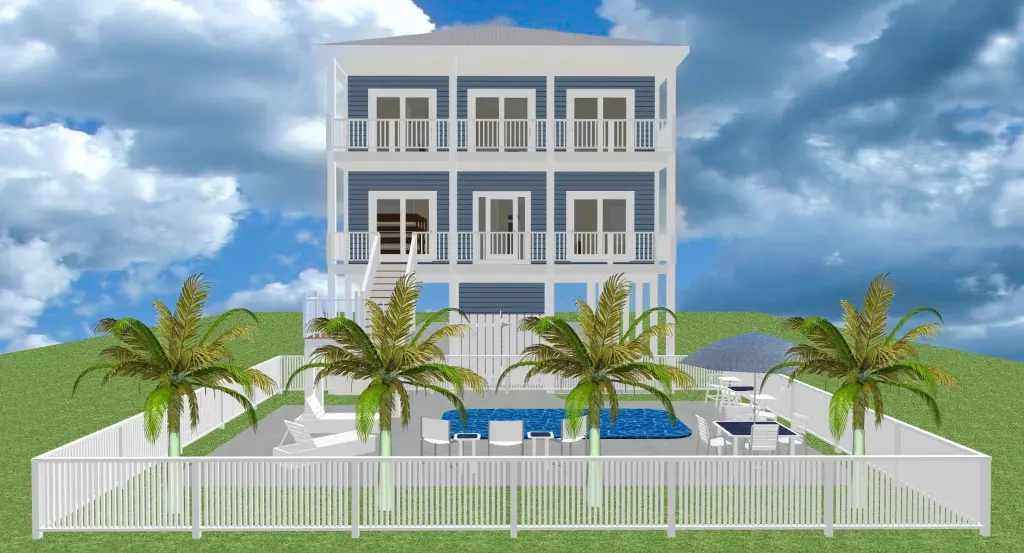

  • Rear patio designed for an optional pool, firepit lounge, or outdoor kitchen
